Condition:
New
Range of Spindle Speed(r.p.m):
1 - 24000 rpm
Positioning Accuracy (mm):
0.02 mm
Number of Axes:
3
No. of Spindles:
Single
Working Table Size(mm):
2000×4000
Machine Type:
CNC Router
Travel (X Axis)(mm):
2000 mm
Travel (Y Axis)(mm):
4000 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
CNC or Not:
CNC
Voltage:
220V/380V or option
Dimension(L*W*H):
5200*2280*1850mm
Weight (KG):
1500
Control System Brand:
Syntec, Mach3, DSP, RichAuto
Warranty:
1 Year
Key Selling Points:
Energy saving
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Food & Beverage Shops
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor
Application:
furniture, closet, cabinet, chair, table etc
Working area:
2000*4000*300mm
Control system:
Germany SIEMNES 808D control system with the MPG
Product name:

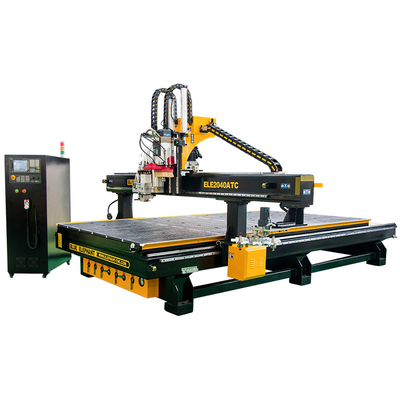

cnc router atc wood furniture cutting machine
Spindle:
Italy HSD 9+3+1 drilling heads
Motor:
1KW Germany SIEMNES servo motor and drive
Transmission:
Taiwan TBI Ball Screw and HIWIN linear guide rail
Advantages:
fast speed, multi-function
Inverter:
11KW Imported Taiwan DELTA
Showroom Location:
Canada
